Knapsack tear gas disperser

C2000-RD

Knapsack tear gas disperser

Technical parameter:

1. C2000-rd type repeated filling tear gas disperser is composed of valve, spray gun, back clip assembly and cartridge. The tear gas is OC, equipped with goggles, masks and other accessories.

2. Appearance: smooth surface, no scratch, no wear, no burr, no oil stain, clean appearance, no deformation, complete parts, tight assembly, clear, complete and firm surface printing words and patterns.

3. Size: disperser height: 265mm, diameter: 66mm

4. Weight: 6.47kg

5. The effective components of tear gas are: OC, content of effective components: 1.6%

6. Spray performance: spray along the wind below 2m / s, spray state is fog, effective spray distance: 10M, effective spray time: 12.4s.

7. Safety: the disperser is designed with a safety switch to prevent misinjection;

8. High and low temperature performance: keep the product in a constant temperature environment of - 30 ℃± 2 ℃ and 55 ℃± 2 ℃ for 4h, without disassembly, leakage, bursting and meeting the jet performance requirements after the test.

9. The product is provided with the test report issued by the quality inspection center of the national security alarm system product quality supervision and Inspection Center (Beijing) of the Ministry of public security, the quality inspection center of security and police electronic products, and the Executive Standards are: GA 884-2010 single police equipment police tear gas ejector, q / rd12-2015 double filling tear gas disperser (enterprise standard)

C3000-RD

Police shoulder type anti riot tear gas disperser

The police knapsack tear gas disperser is a new type of non lethal weapon. It is to use high-pressure gas to quickly spread the stimulant in large area in the target area, smoke small particles stimulant can be suspended in the air about 2 meters from the ground for a long time, and flow with the wind, continue to spread, disperse the troublemakers. This equipment has the characteristics of high efficiency, flexibility, wide range of action, safety and reliability, which can be used to deal with large-scale emergencies and counter-terrorism operations. The main performance, tactical and technical indicators are at the advanced level of similar products at home and abroad, and the key structures and materials are created by the same products at home and abroad.

Main technical parameters

1. Injection mode: air powder sub loading, direct mixing, continuous or intermittent injection.

2. Range: ≥ 30m

3. Injection time: continuous injection > 18S

4. Coverage area: ≥ 2000m2

5. Tear inducing dose: 2.8 + 0.2 (L)

6. Working pressure: 30MPa

7. Working temperature: - 30 ℃ ~ + 50 ℃ (technical parameters:

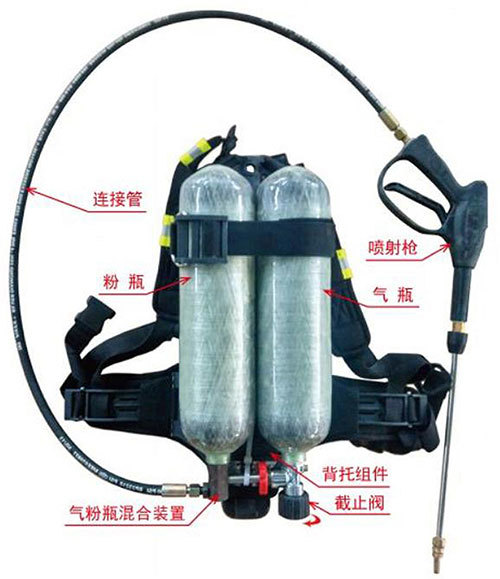

8. Structure: it is composed of high-pressure gas cylinder, powder bottle, valve, spray gun, back clamp assembly, etc;

9. Boundary dimension: height 540mm × width 240mm;

10. Tear gas: CS, 3.4% tear gas;

11. Mass: ≤ 11.6kg (excluding back clamp assembly);

12. Spray performance: spray direction is spray mist, spray distance ≥ 30m, effective spray time ≥ 22.4s;

13. Safety: the disperser is equipped with a safety switch to prevent misinjection;

14. High and low temperature performance: under the environment of low temperature - 20 ℃± 2 ℃, high temperature 45 ℃± 2 ℃, it will not be disassembled, leaked or burst continuously;

Executive standard: GA 575-2005 police tear gas sprayer, Q / rd007-2015 police shoulder type anti riot tear gas sprayer (enterprise standard)

C6000-RD

Police anti riot tear gas disperser

Technical parameter:

1. No load weight: 3kg

2. Capacity: 6L

3. Size: H 42cm * W 20cm

4. Spray distance ≥ 6m, high pressure impact within 3M. Ingredients: CS

5. The general charging time is 8-12 hours. With overcharge protection, charging can be assured.

6. Charging voltage: 220V, output voltage: 12V.

7. It can be operated continuously for more than 60 minutes at one time.

8. Note that the whole machine shall not be immersed in water.

9. Advantages: super capacity, fool type refill!

10. Provide the test report issued by the quality supervision, inspection and test center for safety bulletproof alarm system products of the Ministry of Public Security (Beijing). The Executive Standards are: GA 884-2010 police single police equipment police tear gas ejector, Q / rd01-2014 police anti riot tear gas disperser (enterprise standard)
