rd

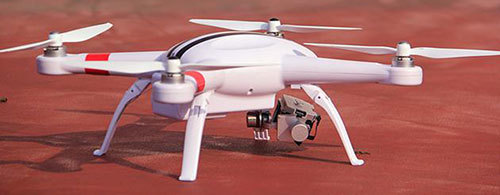

A700

Parameter configuration and performance description:

1. Maximum dimension: 700mm × 700mm × 240mm

2. Folding size: 400mm × 400mm × 240mm

3 weight (including battery): 3900g

4 takeoff weight: 7200g

5. Maximum load: 3300g

6 flight time: 45min

7 wind resistance: Level 6

8 distance between image transmission and data transmission: 10km

9. Maximum range: 23km

10 true flight height: 1000M

11. Maximum altitude: 5000m

12. Maximum level flight speed: 73km / h

13 rain proof grade: heavy rain

14. Working temperature: - 20 ℃ to 55 ℃

15 route planning: autonomous flight

16. Hovering noise 30m from the ground: ≤ 60dB

17 Executive Standards: in accordance with GA / T 1411.1-2017 police unmanned aerial vehicle system Part 1: General technical requirements and GA / T 1411.3-2017 police unmanned aerial vehicle system Part 3: multi rotor unmanned aerial vehicle system, the relevant requirements of the standard, provide the test report issued by the national security alarm system product quality supervision and Inspection Center (Beijing), the safety and police electronic product quality inspection center of the Ministry of public security.



rd

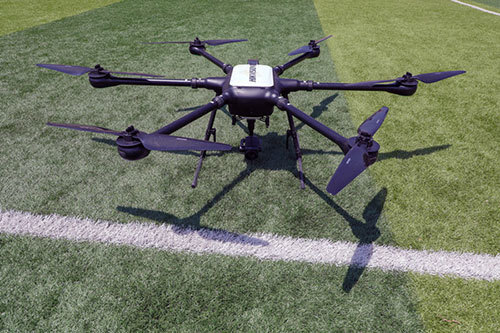

UV6 Standard Edition

Technical parameter

No load: 9.32kg

Wheelbase size: 1500 mm

Maximum flight speed: 20 m / S

Working temperature: - 20 ~ 60 ℃

Working altitude: 5000m

Payload: 5kg

Endurance: 53 minutes

Operation radius: 10km

Ambient humidity: 85%

Wind resistance level: Level 6



rd

UV6 Application version

Technical parameter

No load: 9.32kg

Wheelbase size: 1500 mm

Maximum flight speed: 20 m / S

Working temperature: - 20 ~ 60 ℃

Working altitude: 5000m

Payload: 5kg

Endurance: 53 minutes

Operation radius: 10km

Ambient humidity: 85%

Wind resistance level: Level 6





rd

UV6 Investigative version

Technical parameter

No load: 9.32kg

Wheelbase size: 1500 mm

Maximum flight speed: 20 m / S

Working temperature: - 20 ~ 60 ℃

Working altitude: 5000m

Payload: 5kg

Endurance: 53 minutes

Operation radius: 10km

Ambient humidity: 85%

Wind resistance level: Level 6



rd

UV6 Mooring version

Technical parameter

No load: 9.32kg

Wheelbase size: 1500 mm

Maximum flight speed: 20 m / S

Working temperature: - 20 ~ 60 ℃

Working altitude: 5000m

Payload: 5kg

Endurance: 53 minutes

Operation radius: 10km

Ambient humidity: 85%

Wind resistance level: Level 6
