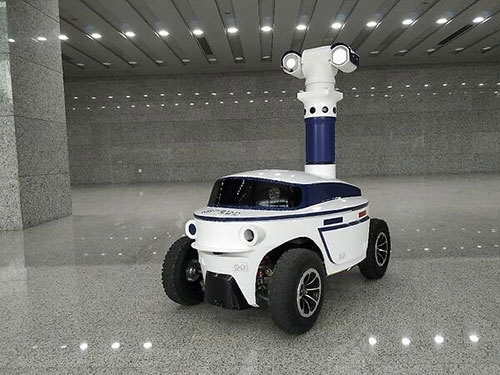

ANBOT-2

Parameter configuration and performance description:

1. Appearance dimension: 1370 * 750mm

2 speed: 4-14km / h

3. Endurance: 8 hours

4 sensor: depth vision sensor, anti drop sensor, anti-collision sensor, ultrasonic sensor

5 actuator: anti explosion electrode

6 dependent network: WiFi 4G

7. Walking mode: automatic / remote control

8. Charging pile: size: length: 588 * width: 210 * height: 362

9. The robot and its management system can provide four core functions: independent patrol, safety prevention, in-process disposal and interactive service, which can be widely used in airport, high-speed rail, subway, shopping mall, hotel lobby, government center, computer room and other occasions.

10. Executive standard: our company issues product quality inspection certificate.

Process characteristics:

1 independent patrol

(1) Map building:

Laser radar or visual slam technology is used to detect the operation area and construct the environment boundary map for autonomous operation of the robot.

(2) Autonomous positioning and navigation:

In the patrol process, the robot uses code disk, IMU, lidar and visual sensor fusion to locate in real time, and performs tasks according to the given route and time.

(3) Autonomous obstacle avoidance:

The heuristic path search algorithm based on potential field map is used to select the safest path, and it integrates many kinds of sensors such as lidar, vision and ultrasound to perceive obstacles and avoid obstacles reasonably.

(4) . automatic charging:

When the robot's power is lower than a certain threshold, it will automatically navigate to the location area of the preset charging point to complete its own power supply.

2 security defense

(1) Video monitoring:

The robot is equipped with four HD cameras to realize 360 ° monitoring of the whole body. The robot management platform can be used to view real-time and historical audio and video data through the network.

(2) Environmental monitoring:

The robot can be equipped with temperature, humidity, smoke and other sensors to monitor the environmental information in its operation environment in real time and report to the robot management platform for real-time warning.

(3) Intelligent detection:

The robot can real-time detect the established targets in the video image, such as human image, pedestrian, dynamic target, vehicle, etc. at the same time, it can also customize and carry other forensics or detection equipment, and upload the detection targets to the robot management platform through the network in real time.

(4) Comparison warning:

The robot management platform can compare the real-time detection targets uploaded in real time. Compare the portrait of key personnel in real time, detect the target in real time, and give early warning according to the identification results.

3 disposal in process

(1) Audible and visual alarm:

When the call button is triggered, the robot will send out an audible and visual alarm and simultaneously notify the robot platform management personnel.

(2) Remote call:

The manager can use the robot management platform to remotely control the robot to realize the remote voice and video calling and interaction functions.

(3) Riot Deterrence:

The robot can be equipped with explosion-proof electric fork, electric shock gun or strong light blinding equipment, and the administrator can remotely control the robot through the robot management platform to realize the functions of remote start of discharge deterrence and explosion-proof collision.

4 interactive services

(1) Autonomous voice services:

Robot system integrates intelligent brain, which can provide voice guidance services based on voice and text interaction, such as chat and dialogue, inquiry service, welcome speech and other human-computer interaction functions.

(2) Audio and video intercom:

In specific scenarios, voice and video intercom can be initiated to the robot management platform through the robot, and customer service can provide better interactive services and business guidance remotely.

(3) Media and entries:

The robot is equipped with multi-media display function, which can play relevant safety promotional films, advertisements, important terms information, etc. during the robot patrol.

(4) Business handling:

The robot system can customize various business services for different application scenarios, such as face authorization, identity entry, business guidance, process completion, etc.



rd

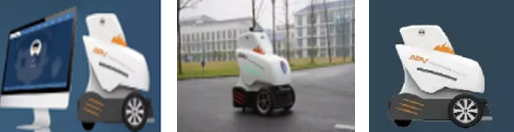

APV

Parameter configuration and performance description:

1. Appearance dimension: 1150 * 780 * 1180mm

2 speed: 5-18km / h

3. Endurance: 8 hours

4 sensors: lidar, infrared ranging sensor, collision detection sensor, ultrasonic sensor

5. Actuator: audible and visual alarm explosion-proof electric fork

6 dependent network: WiFi 4G

7. Walking mode: automatic / remote control

8 charging pile: size: length 320 * width 135 * height 420 (mm)

9. The robot and its management system can be widely used in large-scale occasions such as communities, private parks, venues, administrative compounds, industrial parks, prisons, docks, etc.

10. Executive standard: our company issues product quality inspection certificate.

Process characteristics:

1 independent patrol

(1) Map building

Laser radar or visual slam technology is used to detect the operation area and construct the environment boundary map for autonomous operation of the robot.

(2) Autonomous positioning and navigation

The robot uses code disk, IMU, lidar and vision sensor to fuse real-time positioning.

(3) Autonomous obstacle avoidance

The heuristic path search algorithm based on potential field map is used to select the safest path, and it integrates many kinds of sensors such as lidar, vision and ultrasound to perceive obstacles and avoid obstacles reasonably.

(4) Automatic charging

When the robot's power is lower than a certain threshold, it will automatically navigate to the location area of the preset charging point to complete its own power supply.

2 safety precautions

(1) Video monitoring:

The robot is equipped with four HD cameras to realize 360 ° monitoring of the whole body. The robot management platform can be used to view real-time and historical audio and video data through the network.

(2) Intelligent detection:

The robot can real-time detect the human image, pedestrian, dynamic target and vehicle in the video image, and upload the detection target to the robot management platform through the network.

(3) Environmental monitoring:

The robot can be equipped with temperature, humidity, smoke and other sensors to monitor the environmental information in its operation environment in real time and report to the robot management platform for real-time warning.

3 disposal in process

(1) Audible and visual alarm:

The robot is equipped with a one button call button. When the call is triggered, the robot will send out an audible and visual alarm and simultaneously notify the robot platform management personnel. At the same time, the audible and visual alarm can also be remotely triggered by the robot management platform.

Remote call

In case of emergency, managers can realize remote voice and video calling and interaction function through remote control robot of robot management platform, so as to improve response efficiency after early warning.

(2) Riot Deterrence:

The robot can be equipped with explosion-proof electric fork, electric shock gun or strong light blinding equipment, and the administrator can remotely control the robot through the robot management platform to realize the functions of remote start of discharge deterrence, explosion-proof collision prevention, and effectively deter and curb crime.

4 interactive services:

(1) Entry broadcast

The robot can play important information such as safety and advertisement during patrol.
