Anti riot arm shield for police use

FBP-J-RD

Technical parameters:

★ 1. Structure: the shield body of multifunctional police arm shield is made of 3.0mm-thick alloy plate, with grip and arm belt on the back. It is equipped with lighting unit and window breaker. The lighting unit switch is embedded and installed on the shield body, with three working modes of strong light, weak light and explosion flash. The window breaker is installed on both sides of the upper end of the arm shield.

2. Logo: Chinese "police" and English "poliec" are on the top of the front and in the middle.

3. Color: Black

★ 4. Size: shield length: 675mm, width: 307mm.

5. Weight: 2.45kg.

6. Connection strength of arm belt and grip: evenly apply 250N pull force between arm belt and shield body, keep for 1min, and arm belt shall not fall sharply, loosen, buckle or break.

★ 7. Impact strength: the shield body bears the impact of 147j kinetic energy, without perforation or fracture.

8. Puncture resistance: the shield body bears the puncture of 147j kinetic energy without rupture.

9. Impact strength: the linear speed of the impact point is 18m / s ± 0.3m/s, and the impact energy is 342j ± 13j; the impact back body is not broken.

10. Environmental adaptability: the shield meets the requirements of impact resistance after the temperature is 55 ℃± 2 ℃ at high temperature and - 30 ℃± 2 ℃ at low temperature for 4H.

★ the product provides the inspection report issued by the quality inspection center of the national security alarm system product quality supervision and Inspection Center (Beijing) of the Ministry of public security, the quality inspection center of security and police electronic products after September 2016. The executive standard is GA 422-2008 anti riot shield.

★ Test No.: gJj (Commission) No. 1631189

★ provide 1.5 million product quality and liability insurance for each shield. The insurance period is 8 years.

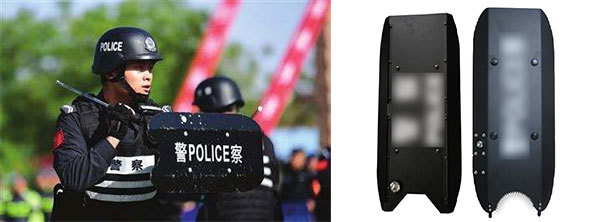

FBP-JL-RD06

Technical parameters:

The multi-functional arm shield is made of aviation aluminum, which is resistant to attack and has strong light source. It can dazzle and explode. A window breaking attack head is installed at both ends of the concave head, which can prevent and attack. It is small in size, light in weight, flexible and versatile, and can be used with other equipment partners.

1. Size: 69 * 30

2. Weight: 2.1kg

3. Illumination brightness: 120 lumens

Puncture resistant 147j kinetic energy puncture

4. Arm belt connection strength: 500N tension

5. Impact strength: 147 kinetic energy impact

★ meet the standard: GA 422-2008 anti riot shield;

★ provide 1.5 million product quality and liability insurance for each shield. The insurance period is 8 years.

RD-FHBD001

Parameter configuration and performance description:

The multifunctional attack and defense arm shield is small in size, light in weight, comfortable in wearing, not limited by the site environment, and high in safety factor. It can defend against human body, stick, hard object, sharp control knife attack, and can break glass quickly.

Product parameters:

Shield body: 5052 alloy aluminum with high hardness and toughness can prevent cutting and beating

Inverted teeth bar: high strength steel bar is used, which can prevent cutting and clamping and prevent tool sliding

Arm band: high strength water resistant, anti-aging and flame retardant fixing belt.

Size: 380 × 160 × 80mm

Weight: 450g (single)

Use and attention:

For the hitting part, the arm shield is mainly used to hit the limbs of the human body. The medial radial median nerve of the arm, the lateral radial nerve of the arm, the lateral fibular nerve of the thigh, the medial femoral nerve of the thigh and the anteroposterior tibial nerve of the leg.

In general, the parts that can not be hit: the joints of head and neck and other key parts.

Function introduction:

1. Anti stick, hard object strike

When the law enforcement personnel are attacked by the perpetrator with a stick or hard object, the police first react with their arms to defend, and at the same time, they also have a flip-flop effect on the wooden and soft objects. In the flip-flop moment, the police can quickly control the perpetrator.

2. Stab proof

The perpetrator attacks the police officer with a sharp and sharp control knife. The multi-functional attack and defense arm shield can prevent two-way cutting, and can also block the knife to prevent the knife from sliding and injuring other body parts.

3. Shattering glass

Police officers need to be able to break glass quickly in case of emergency.

4. Elbow attack

The multi-functional anti riot shield arm has the advantages of small size, light weight, comfortable wearing and high safety factor. It can defend against human body, stick, hard object, sharp control knife attack, and can break glass quickly.

5. Super aggressive

Police officers fight with the perpetrator. When the police arm defense is blocked, the perpetrator will be injured automatically. When the police attack, the perpetrator will be injured more quickly, so that the perpetrator can be quickly subdued.

6. Protection function

Flexible protection methods:

a. One hand protection is light and fast without affecting other hand-held police equipment;

b. When defending with both hands, people's instinctive response to external attack is faster than that of ordinary equipment to block external attack

c. The protective mask can vary according to the actual site, with one hand area (0.06 m2) and two hands combined area (0.12 m2)
